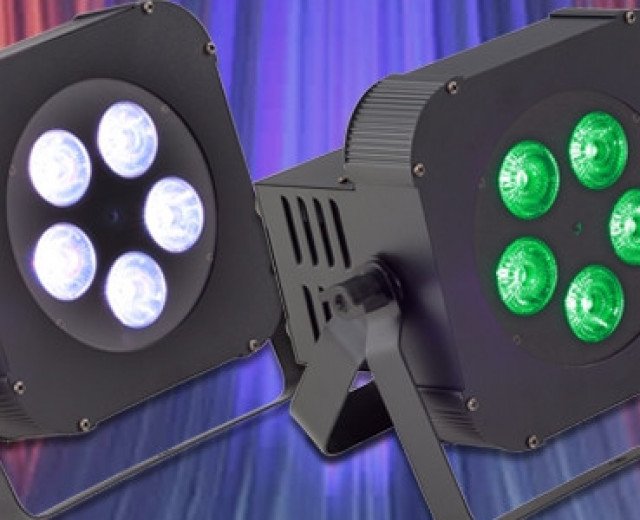

Battery powered 5x 18W o 10W LED PAR w/without wireless DMX

This product line is designed for all those light designer who are constantly “on the go”, for all those professionals who have to fulfil lighting requirements in the very demanding world of show business and entertainment.

How many times did you happen to cover shade areas on a stage or in a venue and you realize that you do not have enough cables for power and DMX control or simply don’t have time enough to install another PAR? Well, the answer is SOUNDSATION Battery-Powered PAR series, the new line up of fixtures self-powered and with wireless DMX control.

The series consists of 4 models with 5 high-output LEDs and a pair of useful accessories. Users may choose between 18W RGBWAV 6in1 and 10W RGBW 4in1 LED versions. Lithium batteries’ lifetime range from 4 to 8 hours, depending on type of use and LED wattage.

All models are equipped with 2CH, 3CH1, 3CH2, 4CH, 5CH, 6CH and 9CH DMX512 control, selectable by the user according to the level of simplicity required. There is also a handy remote control with all major parameters at your fingertips within 5 meters. Finally, the versions “BW” suffix feature a 2.4GHz wireless DMX receiver, which reaches a distance of up to 400 meters without obstacles. This allows you to control - via the optional SOUNDSATION WDX-100 accessory - the fixture by simply switching power on and setting up the correct ID in order to couple the transmitter.

The WDX-100 system can handle up to 7 IDs. Each ID manages up to 126 DMX channels. This means that you can control up to 14 fixtures with 9-Channel DMX control by using a single WDX-100. The maximum number of channels managed by SOUNDSATION WDX system is 126 x 7 = 882.

Finally, still in order to facilitate the “on the road” work, a convenient flight case for 8 units with internal power connection it’s available, so that you can charge the PARs without pulling them out from the case.

SOUNDSATION PAR-18W/10W-5-B/BW- Features

LED source: 5pcs 18W RGBWA+UV 6in1 or 10W RGBW 4in1 LEDs

Built-in Master-Slave, Sound, Jump, Fade and Auto modes

Built-in various strobe functions

LED display, easy to control user interface

Suitable for disco, club, bar, party and DJ shows

DMX Channel Modes: 2CH, 3CH1, 3CH2, 4CH, 5CH, 6CH and 9CH

2.4GHz DMX wireless control, total 7 IDs and 126 channels (available only on BW models; you need SOUNDSATION WDX-100 DMX wireless transmitter)

Rechargeable battery pack for up 7-8 hrs in Auto Mode or Single Color at 100% intensity; 5 hrs in full color at 100% intensity

Battery charge level readout

IR remote control

2 metal brackets for hanging up
