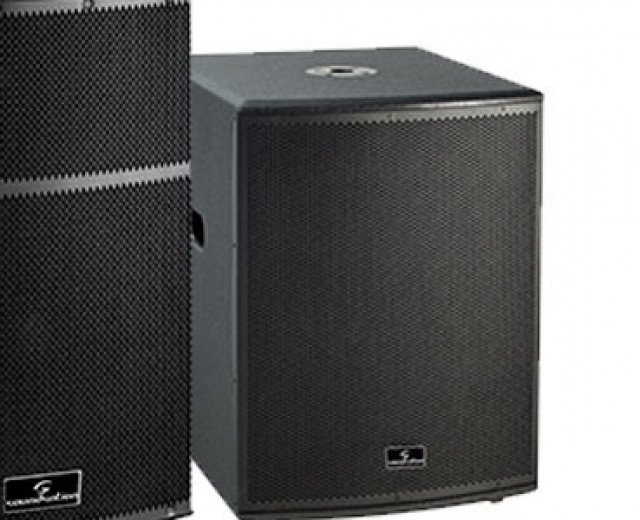

High-Grade Class-D Active Full-Range Speakers and Subwoofers

HYPER series is the result of years of experience gathered by SOUNDSATION in Portable Sound systems. Our goal is to offer musicians and technicians a set of tools able to fully implement the tasks required, focusing on what is really useful: a good sound, reliability and the best value for money.

The HYPER series also meets a precise requirement: versatility. Its wide range (5 full-range active speakers from and 3 active subwoofers), the predisposition for stacked or hanging use, the built-in mixer, allow the use of these tools work in every situation.

The HYPER TOP series features 4 Bi-Amped models with Class-D amplifiers - from 240W to 500W - driving 8” to 15” high-performance woofers; and a smart and extremely versatile 2-way mono-amped model with 100W Class-AB amp on a 6” high-excursion woofer. All units have a sturdy, lightweight and stylish polypropylene enclosure with full metal grille and acoustic foam to protect the transducers inside and give a pleasant look. M8 fixing points, a different number of handles and D36mm pole mount holes, allow any fixed installation or portable applications as well as easily move them everywhere. All tops can accept balanced MIC and unbalanced LINE level signals with different connection formats (XLR, ¼” Jack, RCA, mini-jack). The built-in mixer controls input levels, overall mix e High/Low tones and routes everything to the balanced Mix out.


The HYPER BASS series – this is the name of subwoofers line - features three bass-reflex active subs delivering up to 1200W on 12” to 18” woofers and birch plywood reinforced enclosures. They feature electronic stereo crossovers with balanced connections, X-over cut to 80 or 120Hz, phase reverse, filtered and full-range outputs and a few other standard controls. Nothing more simple and essential to complete your PA sound system.bass-18a-frontale-20160620102119.jpg

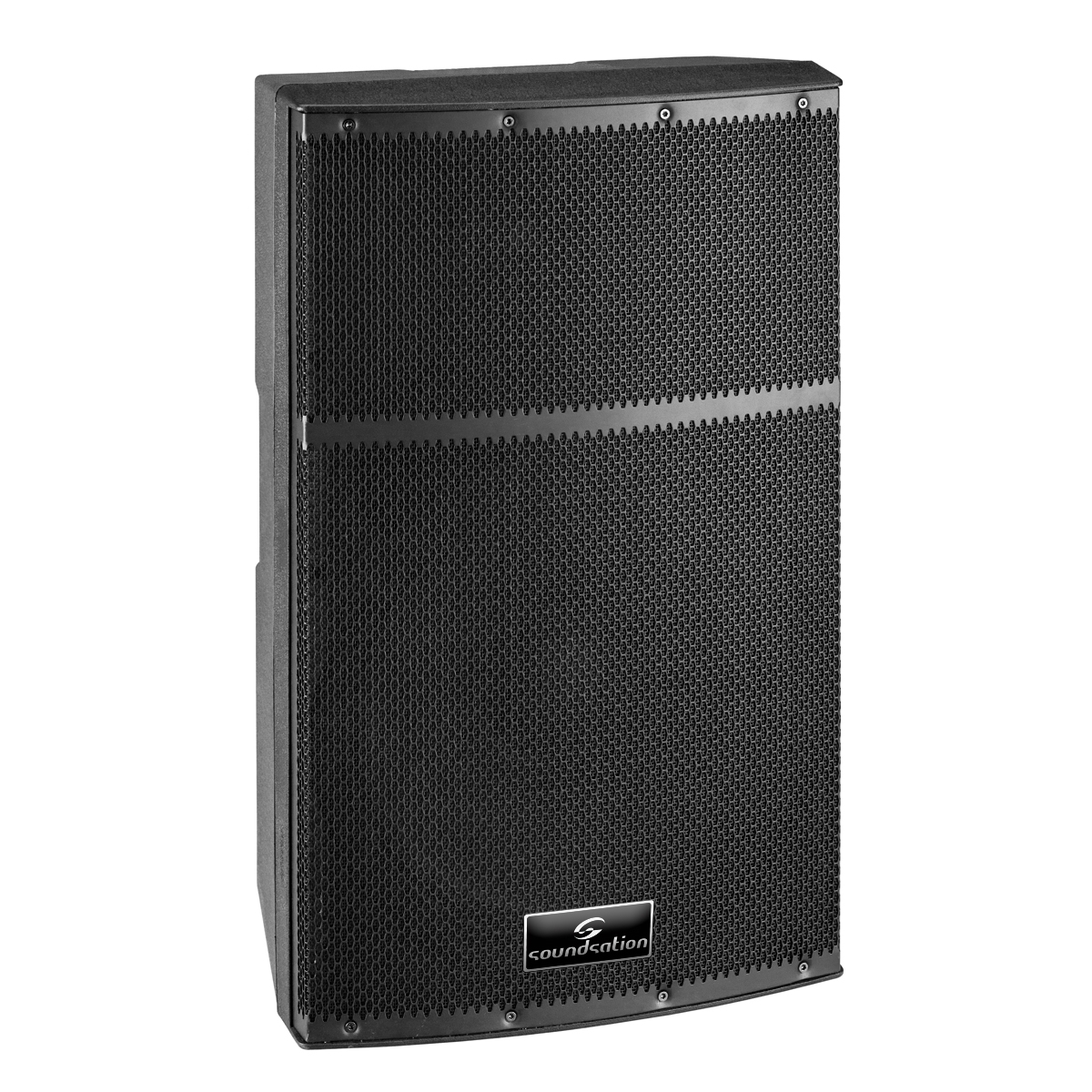

HYPER TOP Series – Features

  • 2-Way bi-amped Active Speakers (HYPER TOP 6A 2-way mono-amped)
  • High efficiency, sturdy and lightweight polypropylene cabinet with full metal grille and foam soundproof material
  • 2 Class D amplifiers (HYPER TOP 6A Class-AB)
  • Woofer from 6” to 15”, 1" driver
  • Microphone/line inputs XLR + jack jack ¼”, line XLR/RCA stereo, mini jack for convenient connection of smartphones and tablets
  • XLR output link out
  • Volume for each channel, master volume and equalization Hi/LOW controls
  • Suited for stage monitor use at 30°/45°
  • 36mm pole mount

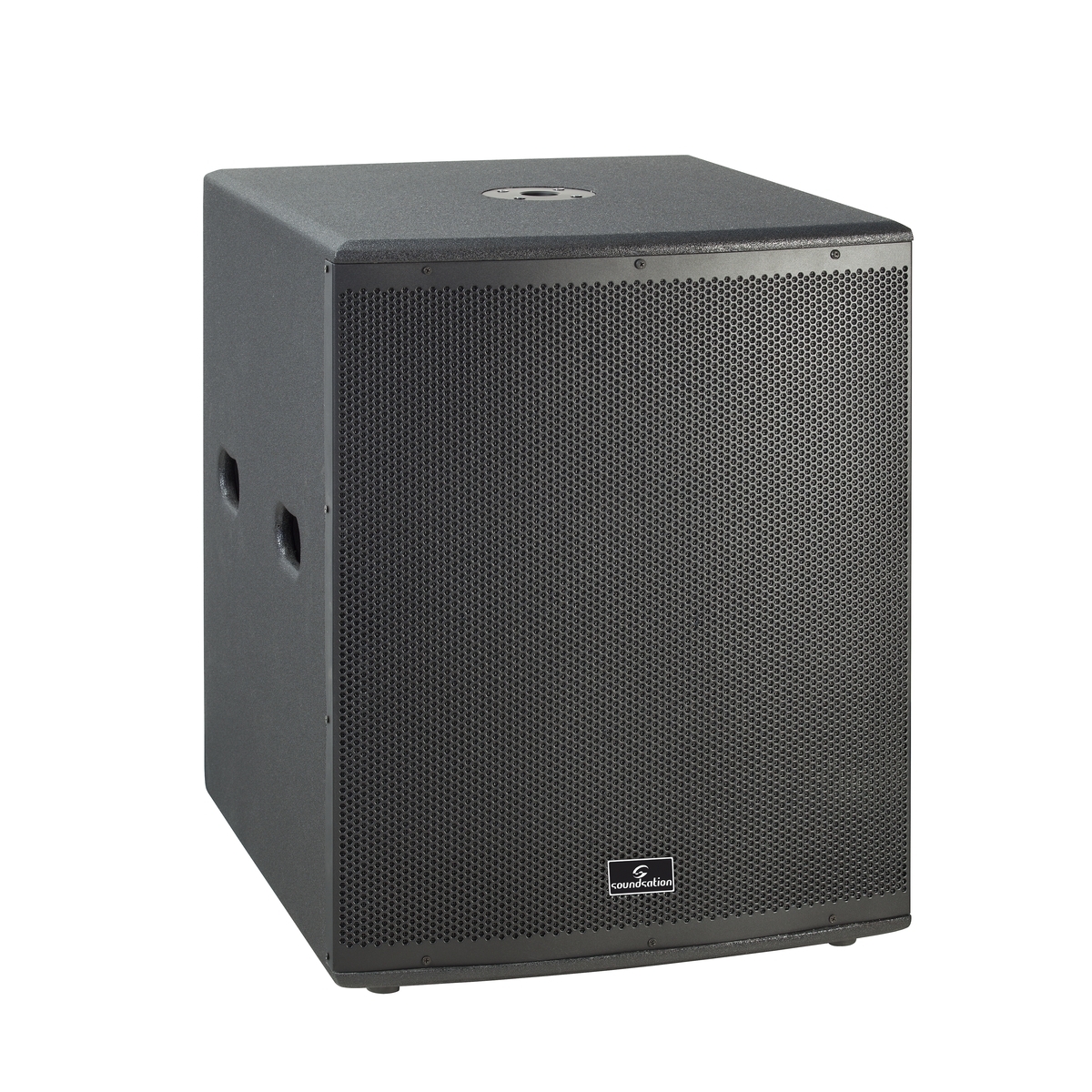

HYPER BASS Series – Features

  • Bass-reflex Active Subwoofers
  • Woofers from 12” tp 18”
  • Up to 1200 Watt class-D amplifiers
  • Integrated active crossovers
  • XLR L/R Balanced Line Inputs
  • XLR L/R Balanced Filtered Outputs, XLR L/R Balanced Link Outputs
  • Controls: Sub Level, 80-120Hz crossover switch, 0-180° Phase, Shape switch, Ground Lift On-Off
  • RMS, Overload, Thermal limiter protection
  • Multiplex Birch plywood enclosures with painted black finish
  • M20 type speaker pole mount to reduce vibrations
  • Predisposition for 4 wheels (only on HYPER BASS 15A and 18A, not included)
